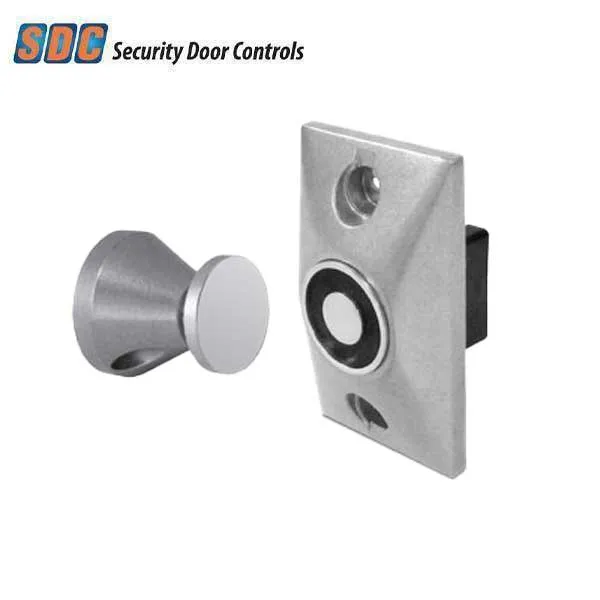

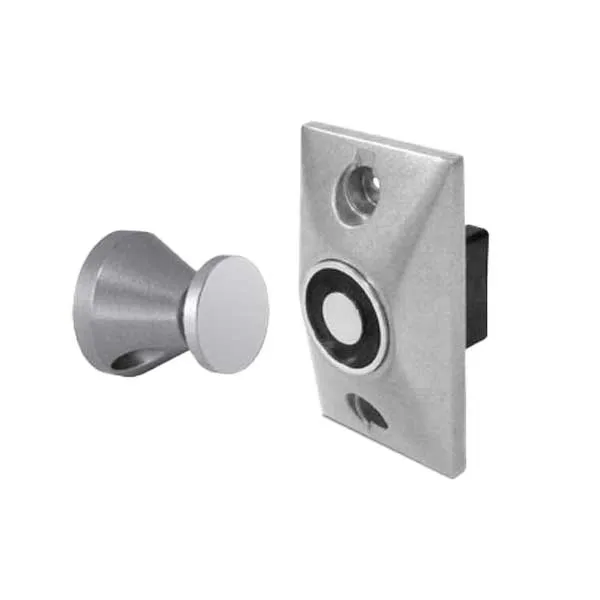

The EH Series Magnetic Door Holders, are designed to hold doors open and release the door by remote switch or fire life safety command center activation. Primary application includes holding and releasing of fire rated doors that are required to provide a barrier for fire and smoke in an emergency or the convenience of door closure by remote control.
Features:
- Choice of 25, 30, 35 or 40lbs holding force:
Determined by units specified voltage - Very low power consumption
Reduced power supply requirements & energy costs
15mA, 20mA or 40mA (see performance data) - High Holding Force standard*
Reduces stock or need to special order high holding force.
Determined by field selected voltage input.
*Not available with 24/220V units - Screw terminal block input connections
No wire nuts or pigtails for simple and neat wiring. - Innovative installation
Eliminates need for secondary alignment adjustments - Self aligning catch plate & adjustable magnet centerline
Ball pivot assembly enables full plate contact and holding force. Optional adjustable rod compensate for extreme misalignment up to 4 inches. Slotted mounting holes enable adjustment of magnet centerline.
Specifications:
| Construction: | Zinc Alloy |
| Voltage: | 1224 - Standard dual voltage AC or DC inputs of 12 & 24V, 24 & 120V, 24 & 220V models |
| Holding Force: | Typical holding force of 25-40 pounds; performance value can be increased to 75 lbs or 110 lbs on special applications (see performance data) |
| Mount: | Single or double coil floor, surface, flush, or recessed mount |
| Total Projection: | Semi-flush mount: 3-1/16” |
| Fasteners: | Hardware package, mounting bracket |
| Finish: | Satin Aluminum - 628 |
| Notes: | Drill fixture available Replacement catch plate and catch plate assembly available Adhesive template included |
| Certifications: | UL Listed |
| Warranty: | Manufacturer Lifetime Warranty |
